White corner made of PE foam 90x90x600

Automatic, folding corner of PE foam 90 × 90 × 600 mm - Automatic shield for long edges and corners 📦🛡️

Foam corner 90 × 90 × 600 mm we deliver folded flat, so the customer immediately saves space in the warehouse. Thanks to the automatic "jingsaw" system you block the sides at a 90° angle in a second - obtaining a 90° corner or linear protector, depending on your needs. The white PE foam (≈ 50 g / pc.) is ultra-light, and its color facilitates quality control on the packing line.

🧩 What is PE foam?

Foamed polyethylene (EPE / PE-LD) is a material with millions of closed air cells. With a density of ~ 23 kg/m³, it combines lightness with elasticity, creating a natural shock absorber for sensitive edges.

🧪 Properties of PE foam – damping & elasticity

• 💥 Shock absorption: the cellular structure disperses energy, protecting glass, laminates, and furniture boards from chipping.
• 🔄 Shape memory: ≥ 10 cycles of 50% compression without permanent deformation.
• 🪶 Ultralight: ≈ 50 g/piece - negligible impact on the "vol-weight" of the package.

💧 Moisture resistance and chemical neutrality

• 💧 Hydrophobicity: closed cells do not absorb water - the corner does not swell in sea containers.
• ⚗️ Non-toxicity: PE does not react with varnishes, adhesives or metals; it does not discolor surfaces.
• 🌡️ Wide temperature range: −40 °C … +90 °C – foam does not crumble in frost and does not soften in a hot warehouse.

🏭 Industries using 600 mm corner

• Premium Furniture 🛋️ – countertops, high-gloss fronts, shelves.
• Doors and carpentry 🚪 – door leaves, door frames.
• Glass industry 🪟 – glass panes, large height mirrors.
• Automotive 🚗 – side windows, door sills.
• E-commerce XXL 📦 – oversize packages by courier or pallet.
• 3PL Logistics 🚚 – fulfilment, returns, cross-docking.

🚚 Logistical and economic benefits

• ⏱️ Automatic assembly: the "jingsaw" system locks the sides in a second - about ~18% faster packing vs. classic corners.
• 📦 Flat packing: on one pallet or in one package fits significantly more pieces - lower transport and storage costs.
• 🧰 2-in-1: 90° corner or edge protector - reduction of SKU number.
• 🔄 Multiple use: the foam doesn't crack, so one element can protect the product in several logistics cycles.
• 💸 ROI after 1 claim: avoided damage to the long edge covers the cost of hundreds of corners.

♻️ Recycling and reuse

The material is free from freons (CFC/HCFC) and 100% recyclable in the LDPE #4 stream. Used corners can be reused or ground into regranulate.

📊 Folded corner 600 mm vs. "L" foam profile

If you are looking for PE foam protection profiles, check our full offer ➜

🛠️ Custom product configurators – match the filling to your process

Besides the 600 mm corners, you can order flap boxes, PE foam sheets and cardboard separators in a few clicks. All creators return an instant price and combine into one basket.

🔹 Custom flap boxes

In the flap boxes creator, you enter the length, width and height of the box, choose the wave and grammage.

• 📦 Filler reduction: box matched to the product + corners = minimal play.
• 💸 Lower shipping cost: No “air” in the package lowers the courier tariff.

🔹 Custom PE foam sheets

The foam_sheet creator allows you to enter the length, width and thickness (10–50 mm) and choose the color.

• 🛡️ Damping separators between layers of stacked goods.
• 📐 Spacers in collective cartons.
• ✂️ Formats cut to unusual shapes.

🔸 Custom cardboard separators

The cardboard_separators creator allows you to choose the format, number of layers and grammage.

• 📦 Layer stabilizers in packs of bottles or cans.
• 🧩 Box separators when stacking pallets.
• ♻️ 100 % paper – easy recycling in waste paper.

🚀 How to combine elements into a coherent system?

1. Reinforce the edges with PE corners.
2. Separate layers with PE foam sheets.
3. Stabilize tiers with cardboard separators.
4. Order everything – one basket, one invoice, synchronized production.

💡 Why is it worth it?

• ⚡ Instant price – full online valuation without waiting for an offer.
• 🎯 Zero material loss – every element to exact dimensions.
• 📉 Less logistics damage thanks to the layer system.
• 🛒 One invoice – corners, boxes, sheets, separators in one order.
• 🚚 Shortened lead time – parallel production of all components.

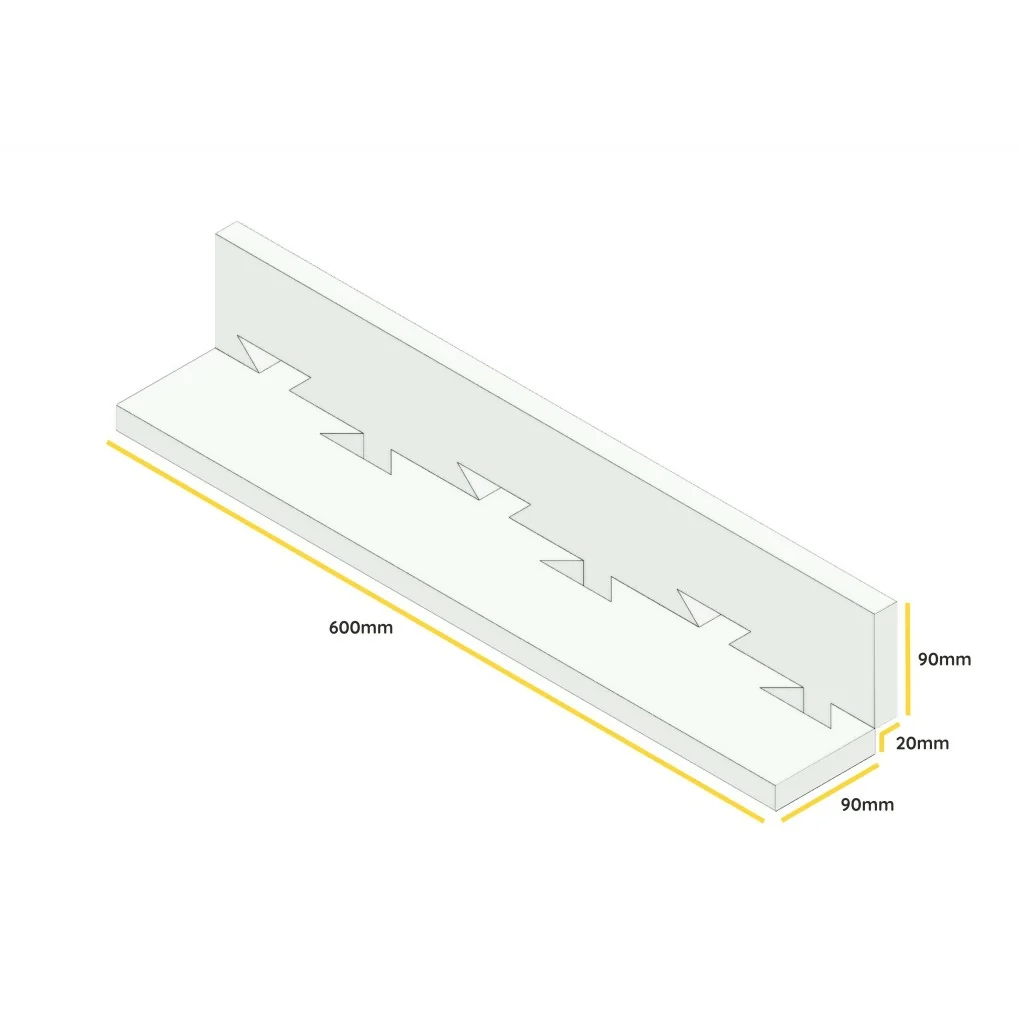

⚙️ Technical specification

• Model: Foldable corner PE 90 × 90 × 600 mm
• Material: foamed polyethylene (PE-LD)
• Color: white
• Foam density: ≈ 23 kg/m³
• Weight: ≈ 0,050 kg/pc.
• Delivery form: folded flat, cuts + automatic "jingsaw" system
• Dimensions when folded: 90 × 90 × 600 mm
• Bulk packaging: 480 pcs./carton (flattened elements)
• EAN Code: 5905489973331
• Recycling: LDPE #4 – 100% recyclable

📞 Wholesale orders and advice

Are you shipping long panels, doors or glass sheets? Contact the Boxmarket team – we will prepare a comprehensive offer for foam corners, boxes and PE sheets, so that your products arrive flawless and without excessive logistics costs.
